MS9740A Anritsu MS9740A Desktop Optical Spectrum Analyzer

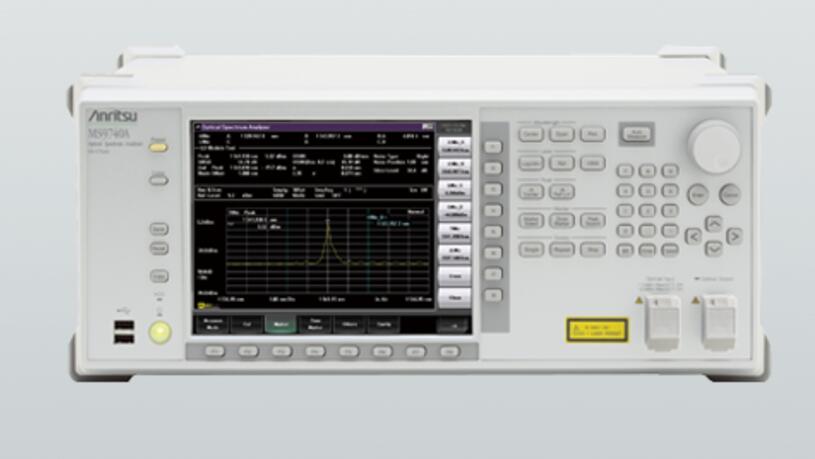

Anritsu MS9740A Benchtop Spectrometer

Anritsu MS9740A Benchtop Spectrometer

Less than 0.2 seconds / 5nm test speed, shorten the time for analysis of optical active devices.

Equipped with application software for the evaluation of optical active devices.

Very good value for money

Dynamic range performance below 60dB (where the peak wavelength is 0.4nm)

30pm minimum resolution bandwidth

A corresponding SM fiber, MM fiber

Low power consumption (75V A), light weight (15kg or less)

Suitable for optical fiber 10μm/ 125μm SM fiber (ITU-T G.652), 50μm/ 125μm GI optical fiber connector User exchangeable FC, SC, ST, DIN, LC Test wavelength range 600nm to 1750nm Wavelength accuracy*1 ±20pm ( 1520nm to 1620nm, decomposition energy: 0.03 to 0.2nm) *2, ±100pm (1520nm to 1620nm, decomposition energy: 0.5, 1.0nm) *2 Wavelength resolution 0.03, 0.05, 0.07, 0.1, 0.2, 0.5, 1.0nm (RBW: 3dB Pass Bandwidth) Maximum Input Optical Power +23dBm (Light ATT: On) Dynamic Range*1 High Dynamic Range: 60dB (where the distance from the peak wavelength is 0.4nm) Normal Dynamic Range: 58dB (from the point where the peak wavelength is 0.4nm) [Resolved Rate: 0.05nm, 1550nm, Light Att: Off, 20 to 30°C] Scanning Wavelength Scanning Width: 0.2nm to 1200nm, 0nm Scanning Speed: ≦ 0.2sec. (span 5nm), [Resolution: 0.1nm, VBW=10kHz , Ordinary dynamic range mode, center wavelength 1550nm,
From the beginning to the end of the scan, no light input, Sample point: £501] Size? Weight 426 (W) x 177 (H) x 350 (D) mm (excluding protective devices), ≦ 15.0kg (without options)
