HP game console lights play true 6
According to the editor, “With the rise of eSports, both the game and the game desktop are breaking out of unprecedented potential, and there is still a strong demand space in a short period of time. At the same time, the launch of a new generation of graphics platforms from Nvidia. It also provides players with more reliable guarantees on the hardware level. As the saying goes, it's a good time to rely on the trees to enjoy the cool weather. How could the major manufacturers miss this era of golden age?
After achieving a good market performance in the Hewlett-Packard Shadow Elf series game, we finally saw the series of desktop works. Although the audience of brand game desktop hosts tends to favor more professional game players, from the perspective of past evaluation articles, ordinary game players have gradually accepted branded game desktops because they compare their own DIY desktops to those of their own brands. The advantage lies in a more reliable after-sales service plan, but also saves the time cost of selecting hardware, not much nonsense, we went straight to the theme to see how this HP Shadow Wizard 870 game desktop host in the end.
On the whole, the difference in the appearance of the machine and our common mainstream desktops is not large, and we are still familiar with the hexahedron, but the overall feeling will be a small circle. In terms of appearance, there are some light strips designed for “game style†on the front of the main body. It is very eye-catching, and the brightness and color of the breathing light support internal software customization. The breathing light provides a total of 5 light patterns and has a CPU. In the state mode, by customizing the breathing light, the “core†dynamics can be grasped at a glance, and it has a certain degree of practicality in addition to aesthetics.
â— Monochromatic mode can choose any color light;
â— Multi-color mode can be displayed in any of 4 colors, the time interval can be selected from 1-600 seconds;
â— Select from 4 preset light colors based on CPU temperature and utilization mode.

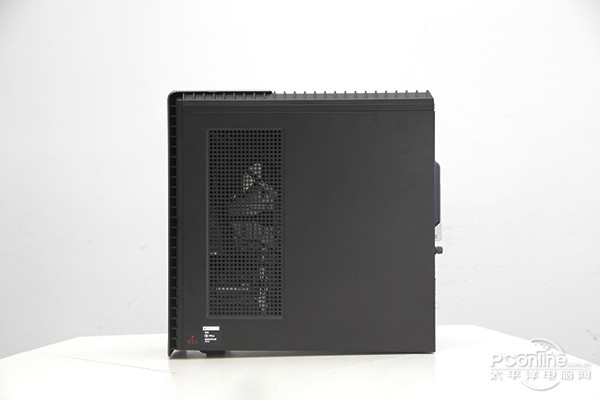

HP Shadow Elf 870 game desktop host is a game desktop machine designed for gamers, so it has a strong internal hardware infrastructure, configuration, the machine is equipped with Intel's seventh-generation Corei7-7700 processor, Nvidia GTX 1060 discrete graphics, 8GB of memory and 128GB SSD + 1TB HDD hard drive capacity combination. At the same time, in order to facilitate heat dissipation, there is a large area of ​​the heat dissipation grille on the side of the fuselage, which greatly increases the flow of cold air and ensures efficient heat dissipation. With the surface brushed metal panel, exquisite elegance, while giving a simple and competent feel.
In the top of the fuselage is a series of interfaces, including two USB3.0 interfaces, a USB3.1 interface, headphone port, microphone hole and an SD card slot, commonly used interface placed in front of the fuselage, easy to use. It is worth mentioning that although the frequency of use of optical drives has been getting lower and lower, the machine still retains the optical drive position and is well prepared.
The richer interface has always been the unique advantage of the desktop, in addition to a series of common interfaces on the top of the fuselage, in the back of the fuselage there are three DP, one HDMI, two USB3.0 and two USB2.0 .
Does the HP Shadow Wizard 870 game console host bring the player the thrill of “killing ten people, staying in a thousand miles†in the game? In front of the small series has briefly introduced the hardware configuration of the whole machine, but whether the better hardware can fully play its performance, but also need to open the fuselage to see its internal arrangement. As for its heat dissipation, alignment, etc., we can see at a glance. Now we must dismantle its “clothes†to see its essence!
Just like an ordinary desktop computer, only one screw is fixed on the side of the body and can be easily removed without tools. Open its body shell, we can see the inside of the fuselage, everything is familiar with the "old" look, internal routing "orderly", better than their own DIY desktop cleaner. It can be seen that the space inside the chassis is actually very abundant, and the space occupied by the motherboard is also relatively small. This layout is beneficial to the heat dissipation of the processor above the mainboard and the discrete graphics card.
This machine uses 100-240V 300W high-power, high-efficiency power supply, with 80 Plus bronze certification more power, higher conversion rate. And with 6+8 pin graphics card dedicated power connector, high-end graphics card use stable.
HP Shadow Elf 870 game desktop host provides a total of two memory card slots inside the fuselage, a single memory of 4GB, players with higher memory requirements can also replace the larger memory.
After seeing the interior of the whole machine, we have already been very aware of its internal conditions. Overall, it is still commendable and reflects the quality that the international first-tier manufacturers should have. And we are most concerned about the game experience and performance, we really test the knife!
â—CINEBENCH R15
CineBench is a very convincing set of CPU and graphics test systems, the latest is the R15 version. Compared to up to 16 cores in R11.5, the R15 version can support up to 256 logic cores. In addition, the new version also enhances the investigation of shaders, anti-aliasing, shadows, lights, and reflection blur, and the performance of CPUs. The test is more accurate.
From the data we have measured, we can see that the machine's ability in data processing is very powerful, with a single-core score of 179 cb and multi-core operation of 862 cb. It is no exaggeration to say that such performance should meet all major games on the market. Smooth operation.
â— AS SSD test results
AS SSD Benchmark is an SSD test software from Germany that can test continuous read and write, 4K alignment, 4KB random read and write and response time performance, and give a comprehensive score. At the same time, the software also comes with the Compression Benchmark project, which can give a curve describing the transformation of performance as the compressible data occupancy (compression ratio) in the data model increases.
â— 3DMark testing
In order to better test the performance of the GTX1060, we used Fire Strike and Fire Strike Extreme benchmarks in 3DMark. The test result screenshot is as follows:
The Fire Strike test gives a score of 10412 points and Fire Strike Extreme scores 5461 points.
â—PCMark 8 test
PCMark 8 is a benchmark performance testing software for Windows system. Home testing is one of the testing modes (5 types in total). It mainly simulates the use environment of common users. The testing project covers web browsing and document processing. Pictures, video chat, light load games, etc., and include both OpenCL accelerated and traditional test modes.
With the acceleration of people's life rhythm, such as the League of Legends, Cross Fire, Watch Pioneer, this fast-paced, strong sense of the game is more popular with ordinary game players, but also the most common Internet cafes games. The reason why the audience is wide is because such online games usually do not require too much hardware performance. If we want to test the game experience of this machine, it is obvious that these mainstream online games are not suitable. Therefore, Xiao Bian chose several large stand-alone games with higher hardware performance requirements, GTA 5 and Singularity.
â— "GTA 5" High Definition
"Grand Theft Auto V" is a crime-themed open-air action adventure game published by Rockstar Games. The game background is based on Los Angeles in the real region and Southern California. Produced, the game has almost the same world view as the real world. Players can play three protagonists and switch at any moment. Each protagonist has his own unique personality and story background, as well as intertwined story.
If you are a GTA 5 player, you should know more about it. In order to test the objectivity of the data, I chose to include the BenchMark test scenario here. From the results given by the Fraps test software, the number of frames of the HP Shadow Elf 870 game console in a certain period of time is stable at more than 110 frames, occasional scenes will drop to about 100 frames.
â— "Singularity"
"Singularity Ashes" is a real-time strategy game created by Stardock. The game was built using the Nitrous engine of Oxide Games. The background is set in the distant future. At that time, human beings are completely ideological and people have mastered the power of God. But humans find themselves in a war. The enemy is an ideological AI called "Haalee" that attempts to overthrow the dominance of mankind in the universe.
Singularity ashes are even more demanding on performance than GTA 5, Xiaobian will have full effect, will run the game's own benchmark after the picture quality is adjusted to the highest, and can be seen in the most abnormal test environment. Still able to guarantee a smooth gaming experience, the number of frames is basically stable at around 45 frames.
â— Product Configuration and Running Points Data Sheet
Product configuration
â— Xiaobian has something to say
In the eyes of everyone, the entire PC industry is declining. The reason why everyone thinks this is that, on the one hand, the ability of the PC to compare with peripheral products is insufficient, on the other hand, it is the data released by third-party statistics websites, but in my opinion, although The downturn of PC is a trend, but it has already passed its most difficult period. Netizens who often watch technology news may notice that the game-related high-end game books and game desktop consoles are powerful, driven by the e-Sports industry. The vitality, the player's demand for game PCs has never been stronger than ever before.
In addition to the online games we often play, the exclusive game masterpieces on Microsoft's XBox-based game consoles have also landed on the Windows 10 platform, which means that your current gaming desktop can not only experience the traditional PC-side games, but also Being an entertainment center in the home is an exciting news for gamers and it is also a driving force behind the replacement of old PCs.
Compared with DIY, the brand desktop has a more comprehensive and humane after-sales service plan, and will also highlight its own characteristics and some customized content in the design of the product, such as the HP Shadow Wizard 870 game that we are evaluating today. Lights on the desktop host. In short, on the product side, the HP Shadow Wizard 870 desktop game console has a solid hardware foundation, user-friendly design, and good service and quality.
Product configuration
